LED TechExpo Moscow (Apr 15 - Apr 17, 2014)



LEDTechExpo Moscow

The 4rd International Trade Fair for LED Technologies, Materials, Chip Design and Manufacturing. LEDTechExpo is the educational and networking platform for LED industry in Russia, bringing together the leading brands, distributors, manufacturers, associations and groups addressing LEDs and solid-state lighting. Moreover it represents every level of the LED/SSL vertical supply chain from substrates to systems, from manufacturing to lighting design. LEDTechExpo take place within the main forum of electronic industry in Russia and Eastern Europe ExpoElectronica 2014.

Brand Name
When	Apr 15, 2014 12:00 AM to Apr 17, 2014 12:00 AM
Where	CROCUS EXPO, Moscow, Russia
Contact Name	Lindia Gofman, Project Development Manager
Contact Phone	+7 812 3806007
Attendees	Specialists of the LED industry Producers and suppliers of LED components, materials, equipment Specialists of engineering companies Buyers looking for LED materials, equipment or finished products. Specialists involved in authorized testing and certification, Professionals from LED research institutes Urban/regional planners Contractors of LED projects LED resellers Manufacturers of LED OEMs Financial analysts and investors.

Benefit from:
Nearly 5000 target audience Nearly 60 exhibiting companies-industry leaders Unparalleled conference content New and investment-friendly customers Decision-makers from target market Professional dialogue of the science and business


The key event: The 3nd International Conference LEDS: CHIPS, PRODUCTS, MATERIALS, EQUIPMENT
The conference is focused on Russian LED market, applications, technology, LED lighting trends, issues and challenges, LED manufacturing processes, roadmap and solutions. The main aim of the conference is to organize business dialogue and effective cooperation between LED industry experts, government agents, scientists and investors.

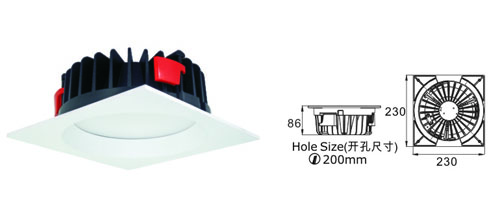

29W Recessed type LED down light AC100-240V CRI80 + LD388S-29W

Model	Watts.	Volts	Color Temp(K)	Lumens	LED	CRI	Beam angle	Housing	Surface	Size(mm)	Dimmable
LD388S-29W	29W	AC100-240V	3000/4000/6000K	2380lm(3000K) 2510lm(4000K) 2600lm(6000K)	Samsung 5630 LED	80+	90°	Aluminum in black color	Aluminum in white color	Ø230*230; Cutout: Ø204	No

Features:

Cutout size 7/8inch (Ø170/Ø200)

Color rendering index 80

Beam angle: Bridgelux COB LED: 60°; Sumsung SMD LED: 90°

High luminous efficiency: Up to 80lm/w

High quality aluminum housing structure good for heat dissipation

Uniform light distribution

Smart design, economic cost

Bruce Erickson Design Studio Danielle Trofe brought two creative LED Hourglass Lamps. Both hourglass lights converted the kinetic energy of falling sand into electricity, this design allows the user to participate in it, once one side of the sand drain finished, the user must manually turn to the other side, and LED get sustained energy supply, thereby promoting awareness of energy limited, and people for saving energy.

9W Ultra - thin LED Round Panel Light Dimmable RPL17024





NUMBER	ITEM	DESCRIPTION
01	Input voltage	AC 100~240V
02	Ceiling panel light Input voltage	DC 24V
03	LED Quantity	3528 chip
04	Power consumption	9W
05	Luminous flux	460 lm(warm white) 500 lm(Cool white) 485lm(white)
06	Color	Warm white White Cool white
07	Color temperature	2500~4000k(Warm white) 4000~6000k(White) 6000~7500k(Cool white)
08	Life time	≥50,000 Hours
09	Operating temperature	-20ºC to + 60ºC
10	Storage temperature	-30ºC to + 80ºC
11	Certificates	CE .RoHS
12	Weight	248G
13	Size	Ø170X26 mm
14	Punch	Ø140~155mm
15	Water proof	IP52

Features:

Energy saving up to 50%. even lighting output.
Low voltage: DC 24V.
Instant start, no flicking, no humming.
New high efficiency constant voltage driver.
Special circuit design, each group of LEDs work separately, avoiding any problem of
lighting output caused or influenced by single faulty LED.
No RF interference.

Keywords:

Led panel / Ultra-thin panel / round led panels / led panel light / led light panels / round led

LED Ceiling light - Round LED Panel light

Round led panel light (led ceiling light)

These series of round led panel lights are not only in beautiful appearance but also give soft and bright light. To install these products means to improve the illumination level, to start a low-carbon lifestyle, helpful for making desired ambiance for every need, what's more? To save electricity fee and reduce maintenance charge. High Lumen Efficiency & Competitive price, contact us NOW!





Specification

Round LED Panel light with external constant current power
Model	Watts.	Volts	Color Temp(K)	Lumens			Finish	CRI	View angle	Size(mm)	Cutout (mm)
RPL16312	12	AC100-240V	3000K/4200K/6000K	550-650lm			white	75+	120	163*16	150
RPL18010	10	AC100-240V	3000K/4200K/6000K	560-660lm			white	85+	120	180*16	166
RPL18012	12	AC100-240V	3000K/4200K/6000K	700-750lm			white	85+	120	180*16	166
RPL20010	10	AC100-240V	3000K/4200K/6000K	500-600lm			white	75+	120	200*26	180
RPL24012	12	AC100-240V	3000K/4200K/6000K	730-800lm			white	75+	120	240*26	220
RPL24015	15	AC100-240V	3000K/4200K/6000K	850-1000lm			white	85+	120	240*16	230
RPL24018	18	AC100-240V	3000K/4200K/6000K	1100-1300lm			white	85+	120	240*16	230
Please contact us for more product list
Model	Watts.	Volts	Color Temp(K)	Lumens			Finish	CRI	View angle	Size(mm)	Cutout(mm)
RPL16312	12	AC100-240V	3000K/4200K/6000K	550-650lm			white	75+	120	163*16	150
RPL18010	10	AC100-240V	3000K/4200K/6000K	560-660lm			white	85+	120	180*16	152
RPL18012	12	AC100-240V	3000K/4200K/6000K	700-750lm			white	85+	120	180*16	152
RPL24015	15	AC100-240V	3000K/4200K/6000K	850-1000lm			white	85+	120	240*16	230
RPL24018	18	AC100-240V	3000K/4200K/6000K	1100-1300lm			white	85+	120	240*16	230
Please contact us for more product list


Illumination intensity

Model	LED Color	Color Temperature CTT	Input Voltage	Output power (W)	Lumen lm	LUX
						1m	2m	3m
RPL16312	Cool white	6000K	AC230V	12	600	242	62	30
RPL18010				10	620	250	65	35
RPL18012				12	780	309	82	40
RPL24015				15	1000	450	115	52
RPL24018				18	1200	472	122	65

Above data will be changed a little due to different installation situation.



Product' line connection chart:

Product Installation instruction:


Application: Stores, homes, jewelry shop, clubs, hotels, halls, etc.

Rollable LED flashlight

When mentioned about flashlights, generally people will think of a straight cylindrical sharp, metal or plastic housing. But this flashlight is getting rid of the traditional shape, it looks more like an expanded rug, then you can roll it up into a tube.

This flashlight is composed by two parts: translucent silicone with LED lights, as well as handle with switch and charging port. The lighting part is made of soft silicone, it’s waterproof and anti-shock. When unfold, it with size of 37x28x2cm, and the diameter is about 8 cm after rolled, just fits the hands.

This works won the Red Dot best concept design award in 2013. Designer: Choo Sumin, Kim Byungsoo, Park Hyeryoung.

6.6W IP20 bright led strip light FLW-R5050-12/24-30-A

Part number	Color	Dimension (mm)	LED QTY	Voltage	Power	Water proof	Lumen
		Reel	Meter		Meter		Meter
FLW-R5050W-12/24-30-A	White	5000*10*2.2	30	12/24V	6.6 watt	IP20	495
FLW-R5050WW-12/24-30-A	Warm White						405

Features:

Available in 12/24V DC.

Very bright & low power consumption.

LEDType: SMD 5050             LED Qty: 30 LED/meter

Operating temperature: -20~50°C.

Long life span LED lights, more than 50,000 hours +.

Can use dimmer and multiple amplifiers.

Non Water-proof, IP20.



Precautions during LED storage and usage

LED is very sensitive electronic components, so must be very careful during storage and usage, otherwise it will cause the damp LED, puncture or death. And a lot of problem LEDs only can be found during usage.

Storage: 1. Moisture proof and anti-electrostatic package with moisture absorbent material must be used, to keep moisture usually can keep for 1 year if not open the package.

2. Before opening the package, the LED should be kept at 30℃ or less and humidity less than 60%RH.

3. After opening the package, the products should be soldered with 24 hours. If not, please store at 30 degree or less and humidity less than 10%RH. It is recommended that the LED be operated at the workshop condition of ≤30℃ and humidity less than 60%RH.

4. If the moisture absorbent material has fade away or the LEDs HAVE exceeded the storage time, baking treatment should be performed based on the 80±5℃ for 24 hours.

Static electricity during usage: Static electricity or surge voltage may damage the LEDs, damaged LED will show some unusual characteristics such as the forward voltage becomes lower, or the LED not light at the low current, or can’t be light up.

All devices equipment and machinery must be properly grounded, at the same time, it is recommended that wrist bands or anti-electrostatic gloves, anti-electrostatic containers should be used during processing LEDs.

Intelligence LED traffic indicator lights

This traffic indicator lights designed by DaWei Xing, it combine solar and LED lighting technology, and remind drivers to take attention to vehicles distance during the high way or frequent traffic accidents road, especially suitable for night and bad weather conditions. This lamp has a solar panel on the top, and a infrared detection sensor.

When the vehicle go near by, the red exclamation mark reminds drivers there are vehicles are less than 50 m ahead, and yellow triangular means there are vehicles within 100 meter, and drivers may slow down, of course, we hope that you see the green circular all the way, because that means the road is free. When no vehicles traveling on the road, the LED indicator lighting will be closed automatically, this is very intelligent lamp. Hoping this lamp can in the market soon, so everybody can share this convenient.

Our unique product :frameless led panel light

We have unique product in the market:frameless led panel light,which is new developed.,Our led panel light have been selling very fast since 2011.

NUMBER	ITEM	DESCRIPTION
1	Power input voltage	AC 100~240V
2	Input  voltage	DC 24V
3	Power  consumption	47±10%W
4	Luminous flux	3210 lm(white) 2832lm(warm white)
5	Color	Warm white-white
6	Color temperature	2500-7000K
7	Life time	50,000hours
8	Operating temperature	-20ºC  to + 50ºC
9	Storage temperature	-30ºC  to + 60ºC
10	Certificates	CE,ROHS,FCC,UL
11	Panel  weight	2.35Kg
12	Luminosity	>230 Lux(1.2meter, White) >193 Lux(1.2meter, Warm white)
13	Water proof	IP20
14	Size	595X595X14.5 mm

Features:
Energy saving up to 50%.even lighting output.
Low voltage: DC 24V.
Instant start, no flicking, no humming.
Special circuit design, each group of LEDs work separately, avoiding any problem
of lighting output caused or influenced by single faulty LED.
No RF interference.
The light guide plate embedded in the aluminum profile, and can not see the frame.

LED to light up backward regions

The Thane Municipal Corporation (TMC) has planned to install around 1,100 LED lights in wards dominated by backward class people. The proposal will be tabled at the upcoming general body meeting. Funds allotted for the backward class will be used for the purpose and a budget of nearly Rs 5 crore has been set aside for the project.


The TMC had planned to install more than 5,000 LED lights across the city which is said to be power consuming up to 50 percent, of which 1,000 have already been installed. lamps across the city and are in the process to illuminate city streets with LED lights spread across nine wards under the jurisdiction of TMC.


LED lights can be used for 75,000 hours, compared to the 17,000 hours of sodium vapour which will cut down the maintenance cost due to durability. Also, the sodium vapour lamps have 20mg of hazardous metal like mercury, said a TMC source. The LED is free of mercury added a TMC source and protecting the nature.
